What it does

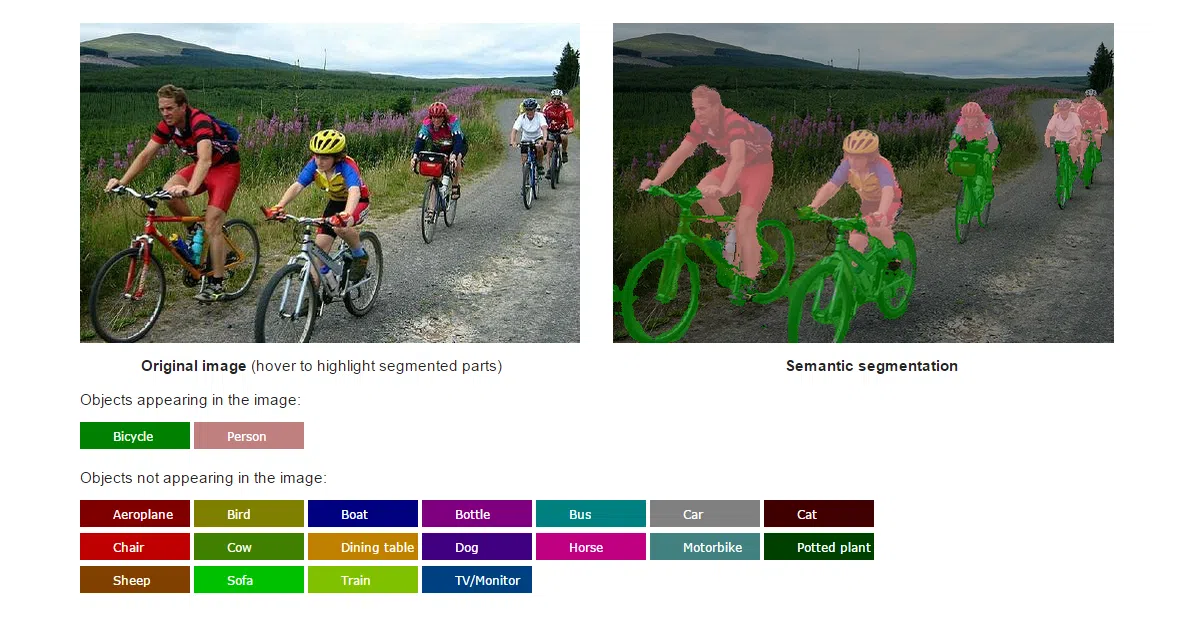

CRF-RNN performs semantic image segmentation: it labels every pixel in an image (20 object classes plus background) and traces the actual 2D outline of each object, not just bounding boxes. The code is a custom Caffe layer called MultiStageMeanfieldLayer that plugs into a standard FCN pipeline.

The interesting bit

The trick is formulating a Conditional Random Field as a recurrent neural network, then training the whole thing end-to-end. The CRF’s mean-field inference becomes unrolled iterations inside the network, so the CNN learns to produce unary potentials that play nicely with the structured refinement stage. In 2015 this was novel enough to win the ICCV Best Demo Prize.

Key highlights

• Ships with Python and MATLAB wrappers, plus a live web demo at crfasrnn.torr.vision
• Pre-trained on PASCAL VOC (21 classes including background)
• Active third-party ecosystem: PyTorch, Keras/TensorFlow, Lasagne, and pure GPU reimplementations all exist
• BSD 3-clause license
• Originally built for augmented-reality glasses to assist the partially sighted

Caveats

• Requires compiling a modified Caffe fork; the README targets Ubuntu 14.04 and involves blacklisting kernel modules for CUDA
• The deploy.prototxt is hard-wired for PASCAL VOC output dimensions; changing classes means manually re-initializing deconvolution weights
• Layer names matter: rename inference1 and the pre-trained weights silently fail to load, producing all-black predictions

Verdict

Worth studying if you care about the history of dense prediction or need to understand why modern architectures (DeepLab, etc.) adopted similar CRF-as-layer ideas. For production use, the actively maintained PyTorch and Keras ports are the pragmatic choice; this repo is essentially a research artifact frozen in Caffe amber.
