Your AI draws architecture diagrams; this kit keeps it honest

What it does

drawio-ai-kit is a validation and layout framework for AI agents that generate draw.io diagrams. It maintains a ground-truth catalog of real stencil IDs and canonical colors for AWS, Azure, GCP, Databricks, and BPMN, while a static analysis validator catches unknown icons, dangling edges, geometry overlaps, and aesthetic violations before serialization. A declarative layout engine computes coordinates from logical topology descriptions—pipeline, hierarchy, hub-and-spoke, and others—so the agent describes the architecture instead of hardcoding pixel positions.

The interesting bit

The project closes the feedback loop with a vision self-check: the kit renders a diagram to PNG so the agent can read its own output and rectify mistakes iteratively. It also ships as five thin Domain Skills that wrap the zero-dependency CLI into agent-friendly workflows, keeping the engine local and self-contained while the skill front-ends update independently.

Key highlights

• Runs locally with no telemetry; the only optional outbound call is opt-in icon fetching from public CDNs.
• Declarative layout engine auto-computes coordinates, frame sizes, and edge routing from topology types like mesh, hubspoke, or sequence.
• Structural validator lints XML for fake stencil IDs, broken AWS group nesting, recolored icons, geometry overlaps, and visual fan-out.
• Vision self-check renders diagrams to PNG for agent-driven render-analyze-rectify loops.

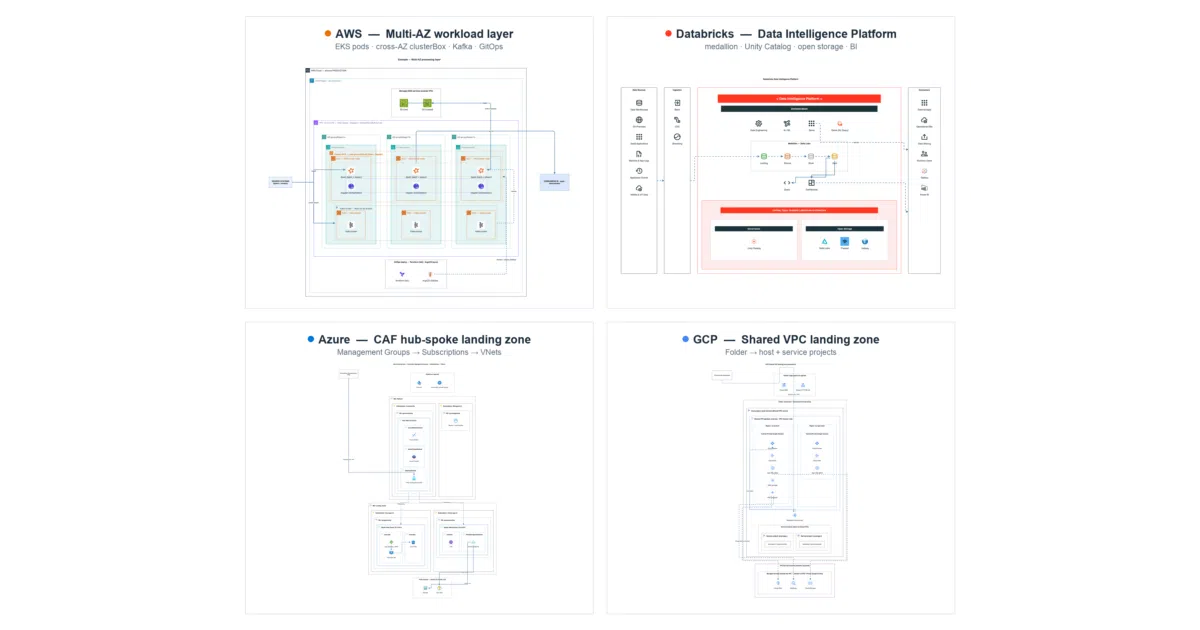

• Covers AWS, Azure, GCP, Databricks, and BPMN with official color palettes and connection points.

Caveats

• Not yet published to the npm registry; the package currently installs only from GitHub.
• Vision self-check and rendering require the draw.io desktop app; large-graph auto-layout needs Graphviz.
• The catalog compilation pipeline requires Python 3.11, though the runtime orchestration layer is Node 18+.

Verdict

Worth a look if you are building AI agents that need to produce accurate cloud architecture diagrams without hand-holding. Skip it if you just need quick, informal sketches and do not care whether your VPC icon is officially sanctioned.
