What it does

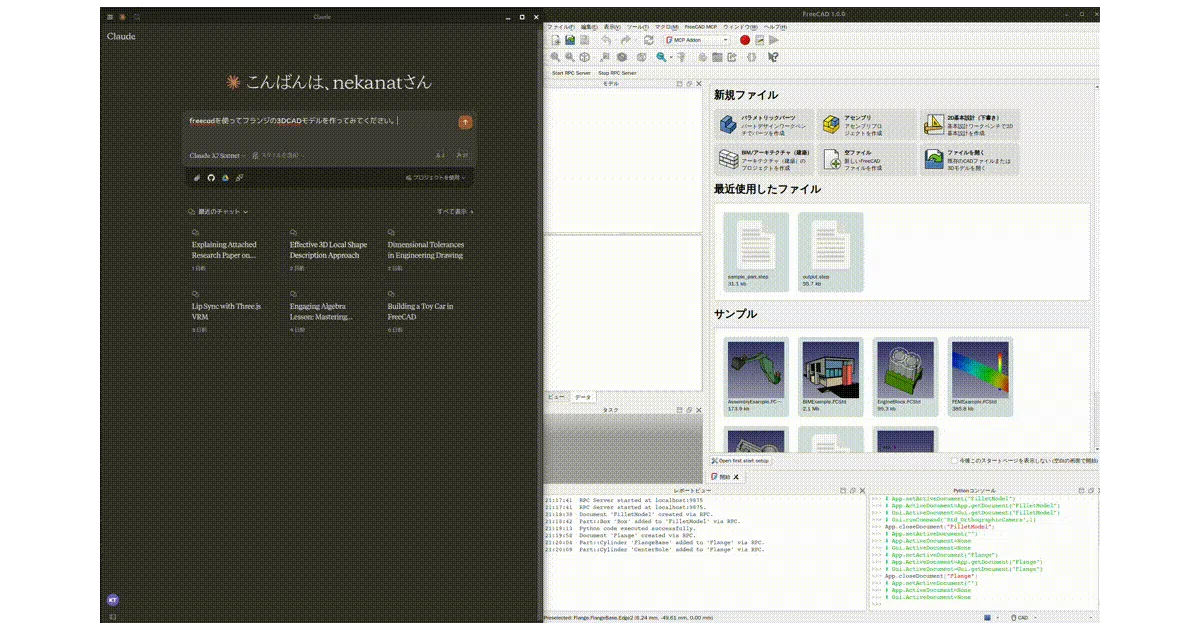

This is a two-part bridge: a FreeCAD workbench add-on that starts an RPC server inside the CAD application, and a Python MCP server that Claude Desktop talks to. The result is that you can describe a part in chat—“design a flange” or “make a toy car from this 2D drawing”—and Claude manipulates FreeCAD’s document tree, geometry, and even finite-element analysis runs on your behalf.

The interesting bit

The project treats FreeCAD as a headless geometry kernel that happens to have a GUI. Claude doesn’t just generate Python scripts; it calls structured tools (create_object, edit_object, execute_code, run_fem_analysis) and gets back screenshots or text summaries, closing the loop between intent and parametric model. The FEM tool is a nice surprise: it auto-creates a CalculiX solver setup if one is missing and returns max von Mises stress and displacement.

Key highlights

• Eleven exposed tools, from document creation to arbitrary Python execution inside FreeCAD’s interpreter
• Screenshot feedback (get_view) so Claude can see what it built and iterate visually
• Remote-control mode: run FreeCAD on a workstation and point Claude at it over the network, with IP allow-listing
• Auto-start RPC server option, persisted across FreeCAD sessions
• Optional --only-text-feedback flag to skip image tokens and keep API costs down
• Includes an end-to-end cantilever FEM example

Caveats

• Setup is manual: install a FreeCAD add-on, restart, select the MCP workbench, start (or auto-start) the RPC server, then edit Claude Desktop’s JSON config
• The README is thorough on paths but doesn’t clarify what happens when Claude’s natural-language intent collides with FreeCAD’s parametric constraint failures
• Remote connection security is basic: IP allow-listing only, no TLS or authentication mentioned

Verdict

Worth a look if you do repetitive parametric modeling or want to experiment with LLM-driven CAD workflows. Skip it if you need production-grade reliability or a polished no-install experience; this is a capable integration layer, not a finished product.
